Non-destructive Coating Thickness Measurement Coating Thickness Gauge

  • 1
  • 2
  • 3

Brand Name : Pride

Model Number : CG200

Place of Origin : China

MOQ : 1

Price : negotiation

Payment Terms : L/C, T/T, Western Union, MoneyGram

Delivery Time : 10-15 wokr days

Computer interface : Download data via USB

Power supply : TWO 1.5V AAA battery

Operation Temperature : 0 to 40℃(32 to 104F);humidity:20% to 90%rh

Size : 110mmx53mmx24mm(4.33”x2.09”x0.94”)”

Case Material : ABS; 92g(3.24oz)

Accuracy : ±(3%+1um) ±(3%+0.039mils)

Name : Non-destructive Coating Thickness Measurement Coating Thickness Gauge

Contact Now

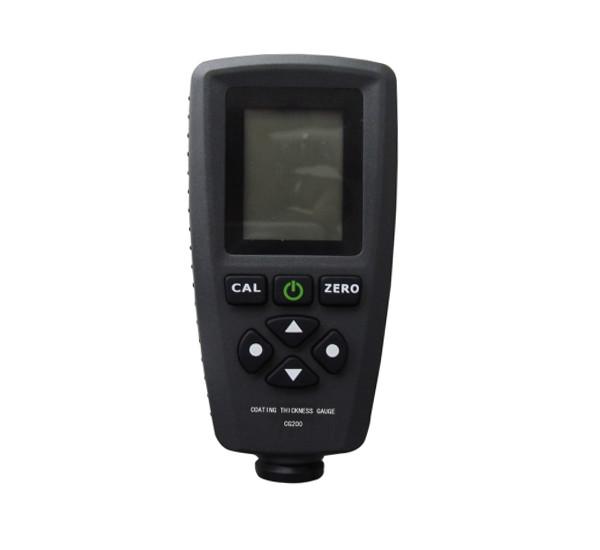

Non-destructive Coating Thickness Measurement Coating Thickness Gauge

Model No.: CG200

This compact gauge can be used for non-destructive coating thickness measurement of non-magnetic coatings,e.g . paint, enamel, chrome on steel,and insulating coatings,e. g. paint and anodizing coatings on non-ferrous metals.

The internal probe can work on both principles,magnetic induction and the eddy Currents.The probe can automatically detect the substrates type(Magnetic or not),and calculate the coating thickness and display it fast.

There are five data groups,and readings will be automatically storaged to memory for general groups(Not for direct group).Each group have individual statistics,alarm limit Settings and calibration. User can recall and delete specified readings easily.

User do all operations via standard menu so easily. User can press the CAL button to Start multi-point calibration freely.

Name Probe F Probe N
Measuring principle Magnetic induction Eddy Currents
Measuring range 0 to 1300um(0 to 51.2mils) 0 to 1300um( 0 to 51.2mils)
Accuracy

±(3%+1um)

±(3%+0.039mils)

±(3%+1um)

±(3%+0.039mils)
Resolution

0um~999(1um)

1000um~1300um(0.01mm)

0mils~39.39mils(0.01mils)

39.4mils~51.2mils(0.1mils)

0um~999um(1um)

1000um~1300um(0.01mm)

0mils~39.39mils(0.01mils)

39.4mils~51.2mils(0.1mils)
Calibration One point to four point calibration, zero point calibration,Basic
Data group

One direct group(readings not be stored to memory)

Four general group(readings will be stored automatically)

NOTE:each group have individual statistics, alarm limit settings and calibration
Statistics No. of readings, mean, minimum,maximum and standard deviation
Units um, mm, mils
Alarm

User can set the high/low alarm limit

Alarm icon displayed on LCD when over the limit
Minimum curvature radius convex 1.5mm
Minimum curvature radius concave 2.5mm
Minimum measuring area Diameter 6mm

Minimum thickness or

substrate

 0.5mm(0.02)” 0.3mm(0.012)”
Maximum measuring rate TWO readings per second
Computer interface Download data via USB
Power supply TWO 1.5V AAA battery
Operation environment Temperature:0 to 40℃(32 to 104F);humidity:20% to 90%rh
Storage environment Temperature:-20 to 70℃(-4to 158F)
Standard compliance ASTM B 499, ASTM D 1400, BS 3900-C5-6B, DIN 50981,DIN 50984, ISO 1461,ISO 2360,
Size 110mmx53mmx24mm(4.33”x2.09”x0.94”)”
Case Material ABS; 92g(3.24oz)
